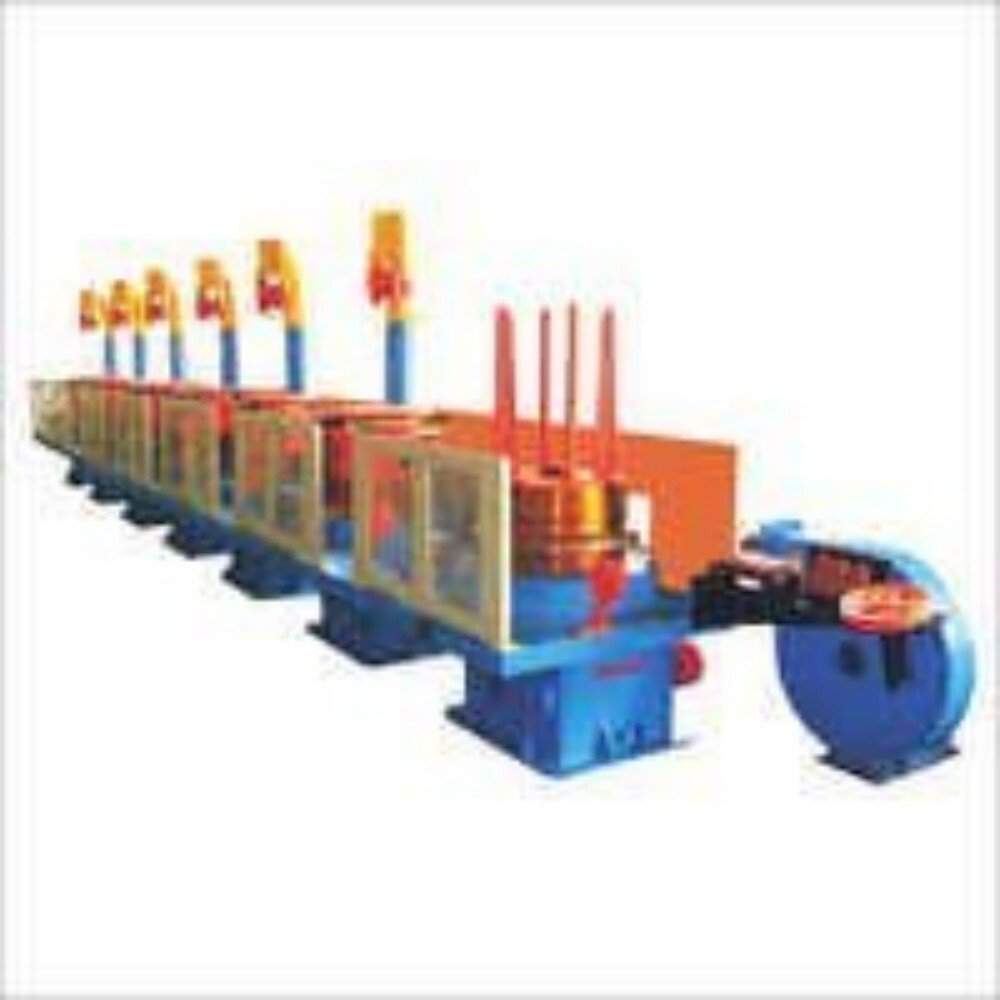

Cover Wire Drawing Machine

Get a Price/Quote

MOQ : 1 Piece

Cover Wire Drawing Machine Specification

Production Speed
Max 110 m/min

Max De-coiler Weight
1200 kg

Power
15 kW

Manufacturing Year
2024

Drawing Material
Copper, Aluminum, Alloy, Steel

Application
Wire Industry, Cable Manufacturing

Product Type
Cover Wire Drawing Machine

Inlet Diameter
Max 2.5 mm

Drawing Passage
7-11 Passes

Function
Continuous Wire Drawing and Covering

Voltage
380 V

Production Capacity
800-1200 kg/day

Wire Material
Copper, Steel, Aluminum

Condition
New

Installation Service
Available upon request

Dimension (LxWxH)
2500 x 1350 x 1600 mm

Cooling System
Water Cooling

Control System
PLC Automatic & Manual

Noise Level
Low Noise Design

Safety Features
Emergency Stop, Interlock, Safety Covers

Driving Type
AC Frequency Inverter Drive

Input Frequency
50/60 Hz

Lubrication Method
Automatic Lubrication System

Drum Diameter
400 mm

Weight
1850 kg

Surface Treatment
Polished / Powder Coated

Cover Wire Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Pieces Per Year

Delivery Time
3 Months

Main Export Market(s)
Asia

Main Domestic Market
All India

About Cover Wire Drawing Machine

We are manufacturer and supplier of high quality Fine Wire Drawing Machine, Copper Wire Drawing Machine, Steel Wire Drawing Machine, Wet Wire Drawing Machine and Industrial Wire Drawing Machine from GHAZIABAD, India. We are manufacturing and supplying Fine Wire Drawing Machine, Copper Wire Drawing Machine, Steel Wire Drawing Machine Wet Wire Drawing Machine and Industrial Wire Drawing Machine to various cities like, NEW DELHI, NOIDA, GHAZIABAD, MEERUT, SONIPAT, MANESAR, GREATER NOIDA, KANPUR, AMBALA, LUDHIANA, PAONTA SAHIB, MUZAFFARNAGAR, RANCHI,PATNA, JAIPUR, JAMMU, INDOR, GUJARAT, AHMEDABAD, MUMBAI, PUNE and many more.

Wire Drawing Machine

Technical Specification

Model No.	TEW 1000	TEW 760	TEW 610	TEW 560	TEW 450	TEW 400	TEW 305
Inlet Size	16.00mm	8.00mm	6.00mm	5.50mm	4.00mm	3.00mm	2.00mm

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weight

Advanced Control System

This machine is equipped with a versatile PLC control system, allowing operators to switch between automatic and manual modes. This ensures precise process management and flexibility for various production requirements, optimizing both safety and productivity.

Superior Surface Treatment

With options for polished or powder coated finishes, the machine provides lasting protection against corrosion and wear. This enhances its durability in industrial settings, maintaining its appearance and function over extended periods of use.

Low Noise and High Safety

Designed for minimal operational noise, this wire drawing machine creates a comfortable working environment. Safety is prioritized with emergency stop functions, interlocks, and protective safety covers to mitigate risks during operation.

FAQ's of Cover Wire Drawing Machine:

Q: How does the Cover Wire Drawing Machine ensure consistent wire quality during production?

A: The machine employs a PLC automatic control system and water cooling to maintain optimal drawing conditions. Its automatic lubrication system guarantees smooth operation, while the low noise and safety features minimize interruptions, ensuring uniform wire quality across copper, steel, aluminum, or alloy materials.

Q: What surface treatments are available for this wire drawing machine, and how do they benefit users?

A: You can choose between polished or powder coated surface treatments. Both options provide enhanced resistance to corrosion and abrasion, which extends the machine's lifespan and reduces maintenance needs in demanding industrial environments.

Q: When is installation service available, and what does it include?

A: Installation service can be arranged upon request at the time of purchase. The service typically covers setup, calibration, operator training, and ensuring proper integration with your production workflow, helping users achieve optimal performance from day one.

Q: Where is this machine mainly used, and what types of wire can it process?

A: The machine is primarily utilized in the wire industry and cable manufacturing sectors. It is suitable for continuous drawing and covering of various wire materials including copper, steel, aluminum, and alloys.

Q: What is the process for wire drawing in this machine, and how many drawing passes are available?

A: The wire drawing process is continuous, facilitated by a robust drive system using AC frequency inverter technology. You can select between seven to eleven drawing passes, accommodating input wire diameters up to 2.5 mm for precise material reduction and covering.

Q: How does the automatic lubrication system improve machine efficiency and reliability?

A: By continuously lubricating moving components, the automatic lubrication system minimizes friction and wear, reducing downtime and extend maintenance intervals. This ensures smooth, efficient wire drawing and contributes to the machine's overall reliability.

Q: What are the main benefits of the machine's low noise design and safety features?

A: The low noise design supports a healthier work environment, while safety features-such as emergency stop, interlock systems, and protective covers-provide robust operational protections, reducing risk for operators and promoting compliance with workplace safety standards.
