Take Up Unit Specification

Product Type

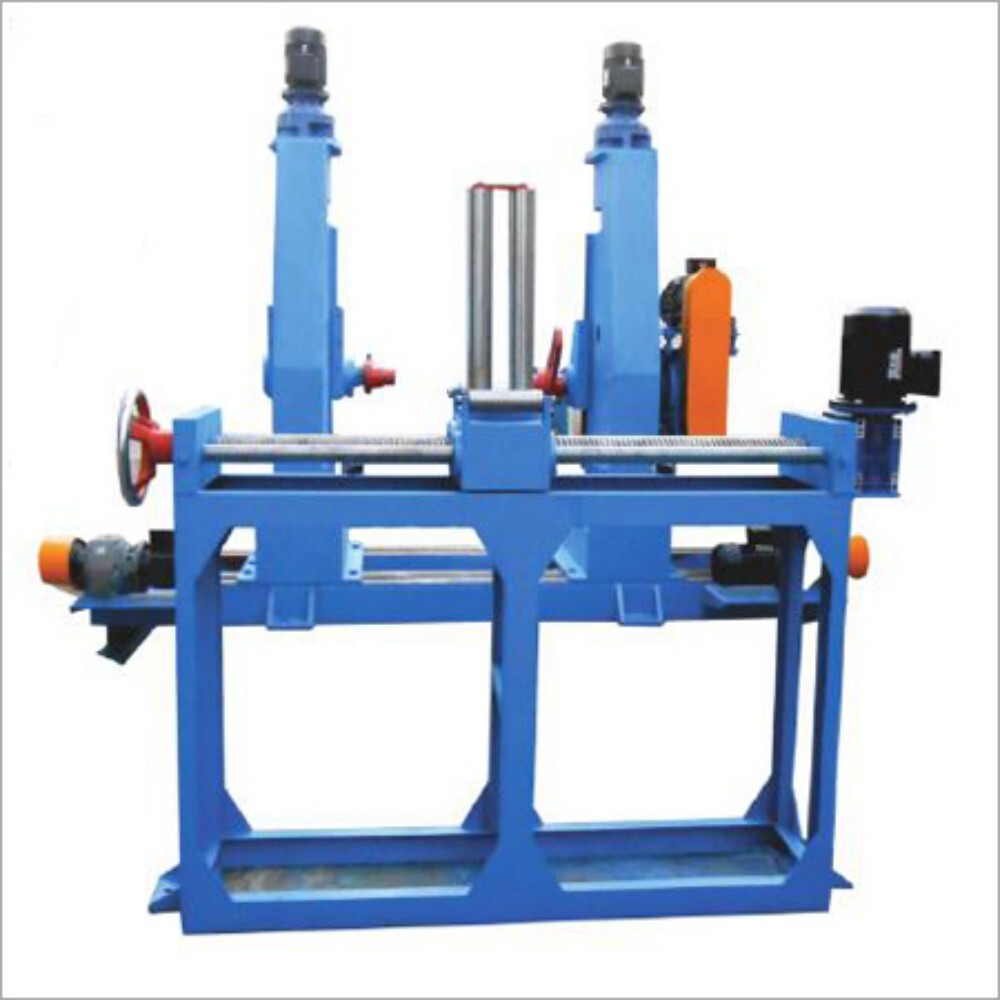

Take Up Unit

Voltage
380 V

Function
Wire collection post drawing

Production Speed
30-120 m/min

Max De-coiler Weight
2500 kg

Power
5 HP

Drawing Passage
Single/Double

Wire Material
GI Wire, SS Wire, Copper Wire, Aluminum Wire

Condition
New

Application
Wire Drawing, Cable Manufacturing

Manufacturing Year
2024

Inlet Diameter
1.70 mm - 3.00 mm

Production Capacity
500-1000 kg/day

Drawing Material
Copper, Aluminum

Surface Treatment
Powder Coated

Tension Control
Manual/Automatic

Control Panel
PLC Controlled

Drive
Gear Driven

Motor Type
AC Induction

Body Material
Mild Steel

Noise Level
< 80 dB

Dimension
1850 x 1100 x 1650 mm (L x W x H)

Automation Grade
Semi Automatic

Take Up Bobbin Size
Up to 630 mm

Take Up Unit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
24 Pieces Per Month

Delivery Time
4 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Take Up Unit

We are a profound manufacturer and supplier of Take Up Unit. It is manufactured under the guidance of our experts using progressive techniques and graded components in tandem with industry defined standards. Our unit undergoes numerous quality checks by our quality controllers before the delivery process. Our Take Up Unit is extensively used for creating networks and nets for overhead wires, hauling, hanging, baling and winding. In addition, it is offered in specified and customized specifications according to specific needs of the customers.

Features of Take Up Unit:

Robust construction
Minimum power consumption
Easy to operate
Noise free operation

Technical Specification

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weight

Advanced Wire Collection Efficiency

This take up unit ensures seamless collection of wire post-drawing, supporting high production demands in cable and wire manufacturing industries. With a robust AC induction motor and gear-driven system, it maintains consistent speed and quality for reliable daily operations.

PLC-Controlled Precision

Featuring a PLC control panel, the machine delivers precise handling of operational parameters, enhancing adaptability and productivity. Operators benefit from simple interface management, enabling both manual and automatic tension adjustments according to material requirements.

Durable Construction with Safe Operation

The mild steel body with powder-coated surface ensures long-lasting protection against wear and environmental factors. Operating at a noise level of less than 80 dB, the unit promotes a safer and more comfortable workspace, making it ideal for extensive manufacturing shifts.

FAQs of Take Up Unit:

Q: How does the semi-automatic take up unit manage wire tension during operation?

A: The unit uses manual or automatic tension control, allowing operators to adjust wire tension as needed. The system ensures smooth wire collection and reduces risks of breakage during the drawing process.

Q: What types of wire materials are compatible with this take up unit?

A: It supports copper, aluminum, galvanized iron (GI) wire, and stainless steel (SS) wire, making it suitable for diverse wire drawing and cable manufacturing applications.

Q: When should the PLC control panel be used in the production process?

A: The PLC control panel is utilized during setup, operation, and monitoring, enabling easy adjustments to operational parameters and facilitating automated or manual control of tension and speed for optimal output.

Q: Where is this take up unit typically installed in a manufacturing facility?

A: The unit is positioned at the end of the wire drawing line, where it collects drawn wire onto bobbins after the drawing process, integrating seamlessly into wire or cable production workflows.

Q: What is the process for wire collection using this equipment?

A: After wire passes through the drawing machine, it enters the take up unit where it is wound onto bobbins up to 630 mm in size. The gear-driven system ensures uniform winding, while the control panel manages speed and tension settings.

Q: How does the powder-coated mild steel construction benefit users?

A: Powder coating enhances the units resistance to corrosion and wear, ensuring durability and reducing maintenance needs. The robust construction also withstands daily industrial use, increasing its operational lifespan.

Q: What are the advantages of the gear-driven design and AC induction motor?

A: Gear-driven mechanisms deliver reliable power transmission and steady speed control, while AC induction motors provide consistent performance, low maintenance, and energy efficiency for high-volume operations.
