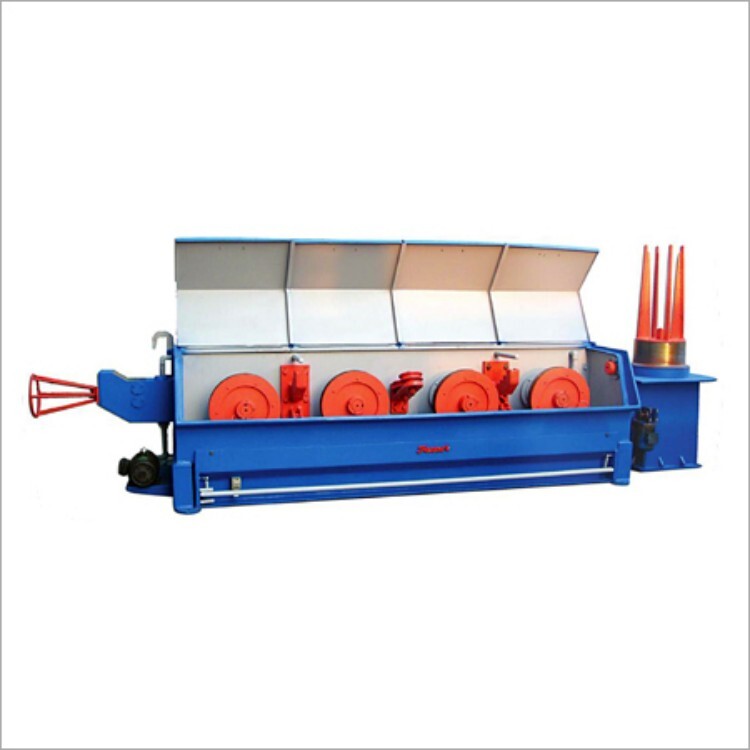

Rod Break Down Machine

Get a Price/Quote

MOQ : 1 Piece

Rod Break Down Machine Specification

Manufacturing Year
2024

Wire Material
Copper, Aluminum

Function
Reduction of Rod Diameter by Drawing

Drawing Material
Copper / Aluminum

Power
50 HP

Condition
New

Voltage
380-440 V, 3 Phase, 50 Hz

Production Speed
25 m/s

Max De-coiler Weight
2500 kg

Application
Wire Drawing

Product Type
Rod Break Down Machine

Production Capacity
1.2 Tons/hour

Drawing Passage
11 Passes

Inlet Diameter
8 mm to 12 mm

Spool Size
600 mm

Control Panel
PLC Controlled

Noise Level
Less than 75 dB

Capstan Type
Vertical Multi-pass

Total Weight
Approx. 6.5 Tons

Die Box Type
Water Cooled

Coiler Type
Automatic

Main Motor Type
AC Motor with Variable Frequency Drive

Lubrication System
Automatic Recirculating

Safety Features
Emergency Stop, Overload Protection

Rod Break Down Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Pieces Per Month

Delivery Time
3 Days

Packaging Details
Open Packaging.

Main Export Market(s)
Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO Certified.

About Rod Break Down Machine

We aremanufacturer and supplier of high quality Rod Breakdown Machine, and Industrial Rod Breakdown Machine from GHAZIABAD, India. We are manufacturing and supplying Rod Breakdown Machine, and Industrial Rod Breakdown Machine to various cities like, NEW DELHI, NOIDA, GHAZIABAD, MEERUT, SONIPAT, MANESAR, GREATER NOIDA, KANPUR, AMBALA, LUDHIANA, PAONTA SAHIB, MUZAFFARNAGAR, RANCHI,PATNA, JAIPUR, JAMMU, INDOR, GUJARAT, AHMEDABAD, MUMBAI, PUNE and many more.

Our company is a quality centric manufacturer and supplier of Rod Break Down Machine Four Spindle. It is manufactured by our talented professionals using high quality materials and latest techniques in compliance with set standards of the domain. The offered machine is widely lauded for its reliable performance, longer service life, sturdy construction and minimum maintenance. In order to meet the particular demands of our clients, we can also offer customized Rod Break Down Machine Four Spindle. Moreover, our esteemed customers can obtain this machine at budget friendly price.

Rod Break Down Machine Four Spindle

For Copper Wire	TEW 317/17	For Aluminium Wire
Inlet Size	8.00mm	Inlet Size	9.50mm
Outlet Size	0.90mm	Outlet Size	1.10mm

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weigh

Advanced Drawing Technology

This machine leverages vertical multi-pass capstans and a precisely controlled AC motor for uniform wire diameter reduction. Eleven drawing passes ensure consistent quality as rod material is drawn from 8 mm to desired gauges, supported by a water-cooled die box for efficient cooling and minimized wire distortion.

Efficient and Safe Operations

With automated recirculating lubrication and a PLC-controlled panel, the Rod Break Down Machine maximizes operational efficiency while minimizing maintenance. Integrated safety systemsincluding emergency stop and overload protectionensure user safety and process security during high-speed, continuous wire drawing.

Superior Performance and Application

Ideal for copper and aluminum rod processing, this machine handles wire drawing at speeds up to 25 m/s and production rates reaching 1.2 tons/hour. Its sturdy construction (approx. 6.5 tons) and high power (50 HP) guarantee durability and suitability for demanding manufacturing environments across India.

FAQs of Rod Break Down Machine:

Q: How does the automatic lubrication system benefit the rod breakdown machines performance?

A: The automatic recirculating lubrication system minimizes friction and wear on moving components, ensuring smoother operation and reducing maintenance needs. As a result, the machine delivers consistent wire quality, prolongs equipment longevity, and supports reliable production at high speeds.

Q: What materials can be processed using this rod break down machine?

A: This machine is designed specifically for drawing copper and aluminum rods. It can reduce inlet rod diameters ranging from 8 mm to 12 mm, making it suitable for a wide range of wire drawing applications in electrical, construction, and industrial manufacturing.

Q: When should the emergency stop and overload protection safety features be used?

A: The emergency stop should be activated immediately in the event of any operational hazard, equipment malfunction, or unexpected personnel exposure to danger. Overload protection automatically engages if the system exceeds preset load limits, protecting both the operator and the machinery.

Q: Where can this machine be installed and utilized?

A: This rod break down machine is suitable for installation in wire manufacturing plants, metal processing facilities, and other industrial environments across India. Its robust design and three-phase, 380440 V compatibility make it adaptable to a variety of industrial electrical systems.

Q: What is the process for reducing rod diameter with this machine?

A: The wire drawing process involves feeding copper or aluminum rod into the machine, where it passes through a series of eleven water-cooled dies mounted in a vertical multi-pass capstan. At each stage, the rod is incrementally reduced in diameter, with the automatic coiler collecting the finished wire at high speeds.

Q: Why is PLC control important in this rod break down machine?

A: PLC (Programmable Logic Controller) control enables precise management of operational parameters, monitoring of real-time data, and fast adjustment to process settings. This ensures consistent product quality, optimizes energy usage, and enhances operator convenience during wire drawing operations.
