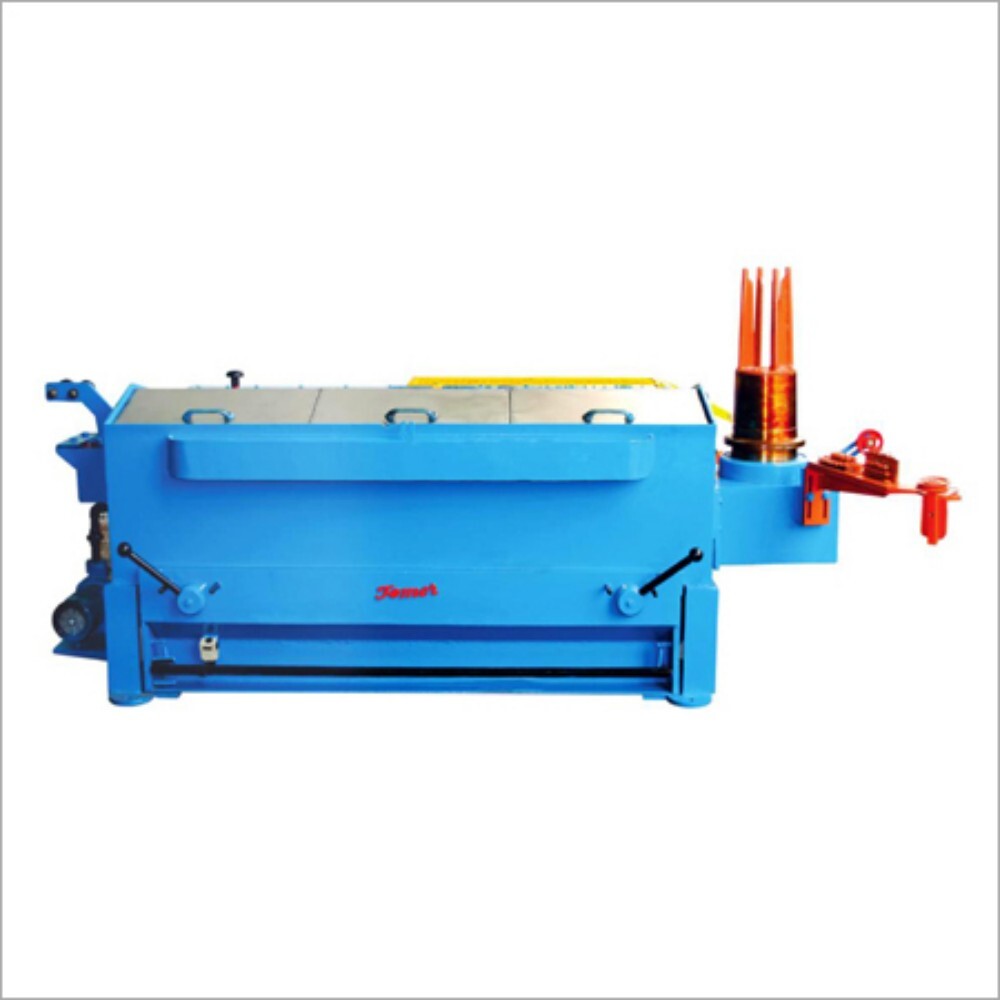

Multi Wire Drawing Machine

Get a Price/Quote

MOQ : 1 Piece

Multi Wire Drawing Machine Specification

Product Type
Multi Wire Drawing Machine

Inlet Diameter
2.0 - 3.20 Millimeter (mm)

Application
Industrial Use

Drawing Material
Wire

Condition
New

Safety Features
Emergency Stop, Interlock Protection

Lubrication System
Forced Circulation

Number of Spools
16

Take-Up Bobbin Size
560 mm

Control System
PLC Automatic Control

Frame Material
Heavy Duty Steel

Weight
Approx. 4200 kg

Wire Diameter Range
0.15 mm to 1.2 mm

Noise Level
<80 dB

Cooling System
Water Cooling

Multi Wire Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Multi Wire Drawing Machine

Intermediate Wire Drawing Machines

The Multi Wire Drawing Machine is an advanced manufacturing solution designed for the simultaneous drawing of multiple wire strands with high precision and efficiency. Engineered for continuous, high-speed production, it ensures uniform wire diameter, excellent surface finish, and consistent mechanical properties across all wires. The machine features robust construction, precision dies, and advanced control systems that optimize productivity while reducing material waste and operational costs.

Suitable for processing copper, aluminum, steel, and other metal wires, it is widely used in cable manufacturing, electrical conductors, fasteners, and industrial wire production. With its energy-efficient design, reliable performance, and low maintenance requirements, the Multi Wire Drawing Machine delivers superior output quality and enhanced production capacity for modern manufacturing facilities.

For Copper Wire	TEW 312/11	For Copper Wire	TEW 312/11	For Copper Wire
Inlet Size	3.20mm	3.00mm	2.60mm	2.00mm
Outlet Size	1.00mm	0.80mm	0.60mm	0.60mm
For Aluminium Wire
Inlet Size	4.00mm	4.00mm	4.00mm	4.00mm
Outlet Size	1.70mm	0.90mm	0.75mm	0.50mm
For MS Wire
Inlet Size	2.00mm	2.00mm	2.00mm	2.00mm
Outlet Size	0.70mm	0.60mm	0.50mm	0.38mm
For Hi-Carbon Wire
Inlet Size	2.00mm	2.00mm	2.00mm	2.00mm
Outlet Size	0.70mm	0.60mm	0.50mm	0.38mm
For Stainless Steel Wire / Nicron Wire
Inlet Size	1.60mm	1.40mm	1.20mm	1.00mm
Outlet Size	0.67mm	0.51mm	0.38mm	0.25mm

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weight
