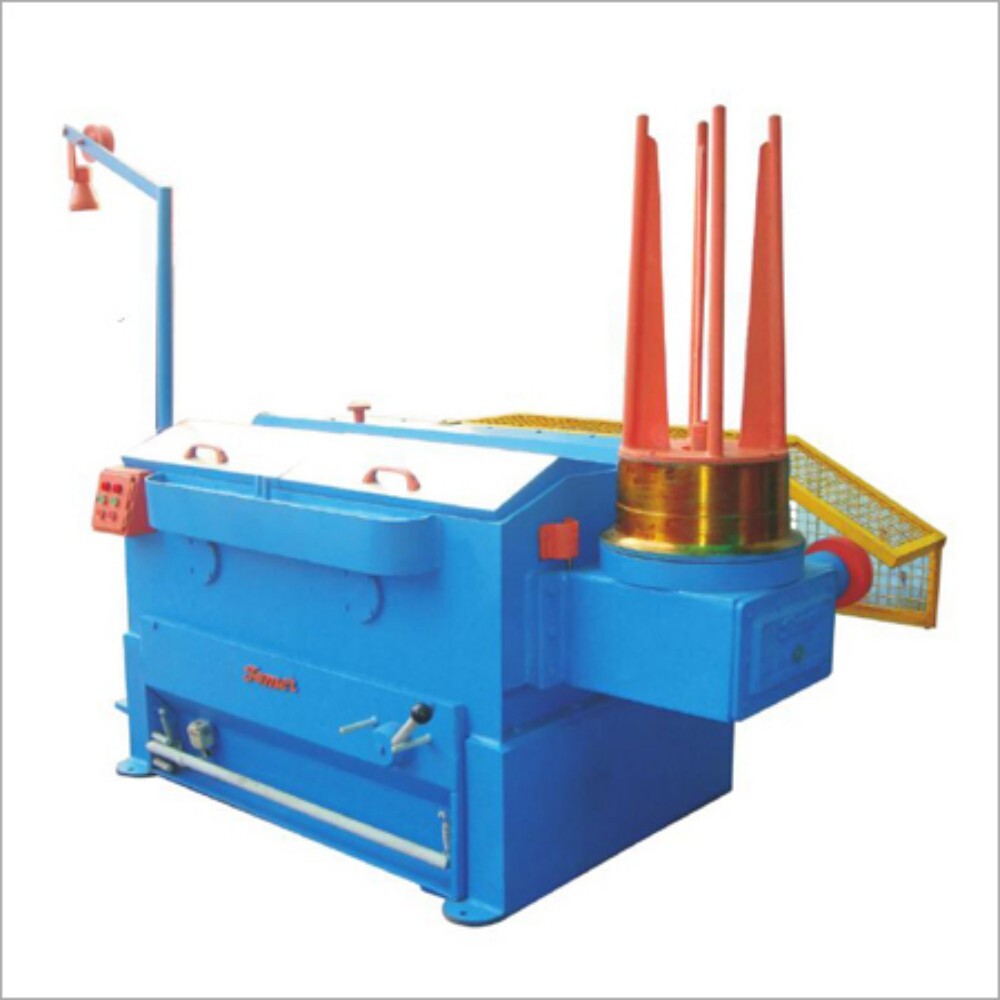

Automatic Wire Drawing Machine

Get a Price/Quote

MOQ : 1 Piece

Automatic Wire Drawing Machine Specification

Max De-coiler Weight
5000 kg

Function
Automatic Wire Drawing

Condition
New

Drawing Material
MS, SS, Copper, Aluminum

Voltage
380 V

Manufacturing Year
2024

Production Capacity
1500 kg/h

Production Speed
12 m/s

Wire Material
Mild Steel, Stainless Steel, Copper, Aluminum

Drawing Passage
7

Inlet Diameter
2.5 mm

Application
Industrial Wire Drawing

Power
7.5 kW

Product Type
Automatic Wire Drawing Machine

Control System
PLC Controlled

Dimension (L x W x H)
4200 x 1600 x 1800 mm

Noise Level
Less than 80 dB

Safety Features
Emergency Stop, Overload Protection

Lubrication System
Automatic

Speed Adjustment
Variable Frequency Drive (VFD)

Cooling System
Water Circulation Type

Body Material
Heavy Duty Mild Steel Frame

Weight
3500 kg

Wire Outlet Diameter
0.8 mm

Automatic Wire Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Automatic Wire Drawing Machine

Amidst as the notable manufacturers and suppliers in this domain, we are engaged in offering technologically advanced Intermediate Wire Drawing Machine. To increase the production of metallic wire in different thickness and length, this machine is widely used in cable industry. The offered machine is manufactured by making use of fine grade components at our well equipped manufacturing unit under the supervision of our technical experts. Furthermore, this Intermediate Wire Drawing Machine is available in numerous technical specifications as per fulfill diverse needs of clients.

Features of Automatic Wire Drawing Machine:

Impeccable performance
Easy operation
Robust design
Longer service life

Specifications:

For Copper Wire	TEW 314/13	TEW 314/15	TEW 314/17
Inlet Size	4.00mm	4.00mm	4.00mm
Outlet Size	1.10mm	0.90mm	0.75mm
Inlet Size	6.00mm	6.00mm	6.00mm
Outlet Size	1.65mm	1.35mm	1.10mm

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weight

Advanced Control & Automation

Equipped with a state-of-the-art PLC control system, this machine enables precise, automated control of the wire drawing process. The Variable Frequency Drive (VFD) allows for dynamic speed adjustment, ensuring optimal performance and adaptability to varied wire materials and production requirements. Operators benefit from an efficient interface, reducing human error and enhancing productivity.

Durability & Safety

Built with a heavy-duty mild steel frame, the machine ensures reliability and longevity, even in rigorous industrial settings. Key safety features like emergency stop and overload protection safeguard operators and equipment. Automatic lubrication extends component life, minimizing downtime and maintenance interventions.

High Capacity & Versatile Applications

This wire drawing machine delivers a high production capacity of up to 1500 kg/h and a maximum speed of 12 m/s, supporting a wide range of materials including mild steel, stainless steel, copper, and aluminum. Its seven-drawing passages and robust cooling system make it suitable for continuous industrial operation and diverse manufacturing needs.

FAQs of Automatic Wire Drawing Machine:

Q: How does the PLC and VFD control system improve wire drawing efficiency?

A: The PLC control system manages all machine operations automatically, minimizing manual intervention and potential errors. The Variable Frequency Drive (VFD) allows for smooth, precise speed adjustments to match different material specifications, optimizing both output quality and energy consumption.

Q: What materials can be processed in this automatic wire drawing machine?

A: This machine can process mild steel, stainless steel, copper, and aluminum wires. It is designed for industrial applications requiring wire diameters from an inlet of 2.5 mm down to an outlet of 0.8 mm.

Q: When should the machines lubrication and cooling systems be maintained?

A: The machine features automatic lubrication, which reduces routine maintenance needs. However, regular inspections according to the manufacturers scheduletypically every few hundred operation hoursensure both lubrication and water circulation cooling systems function optimally.

Q: Where is this wire drawing machine commonly used?

A: It is primarily utilized in industrial settings such as manufacturing plants and metal processing facilities across India, serving manufacturers, suppliers, and traders who require consistent, high-capacity wire production.

Q: What is the wire drawing process used by this machine?

A: Wire drawing involves pulling wire through a series of seven progressively smaller dies, reducing its diameter from 2.5 mm to 0.8 mm. The process is fully automated, with speed control and monitoring handled by the PLC and VFD system.

Q: How does the automatic lubrication system benefit the operator?

A: The automatic lubrication system ensures critical components are properly lubricated throughout operation, reducing wear and tear, extending service intervals, and minimizing the need for frequent manual maintenance.

Q: What safety features protect operators during machine usage?

A: The machine is equipped with emergency stop functions and overload protection. These features instantly halt operations in unsafe conditions, safeguarding both the operator and the equipment.
