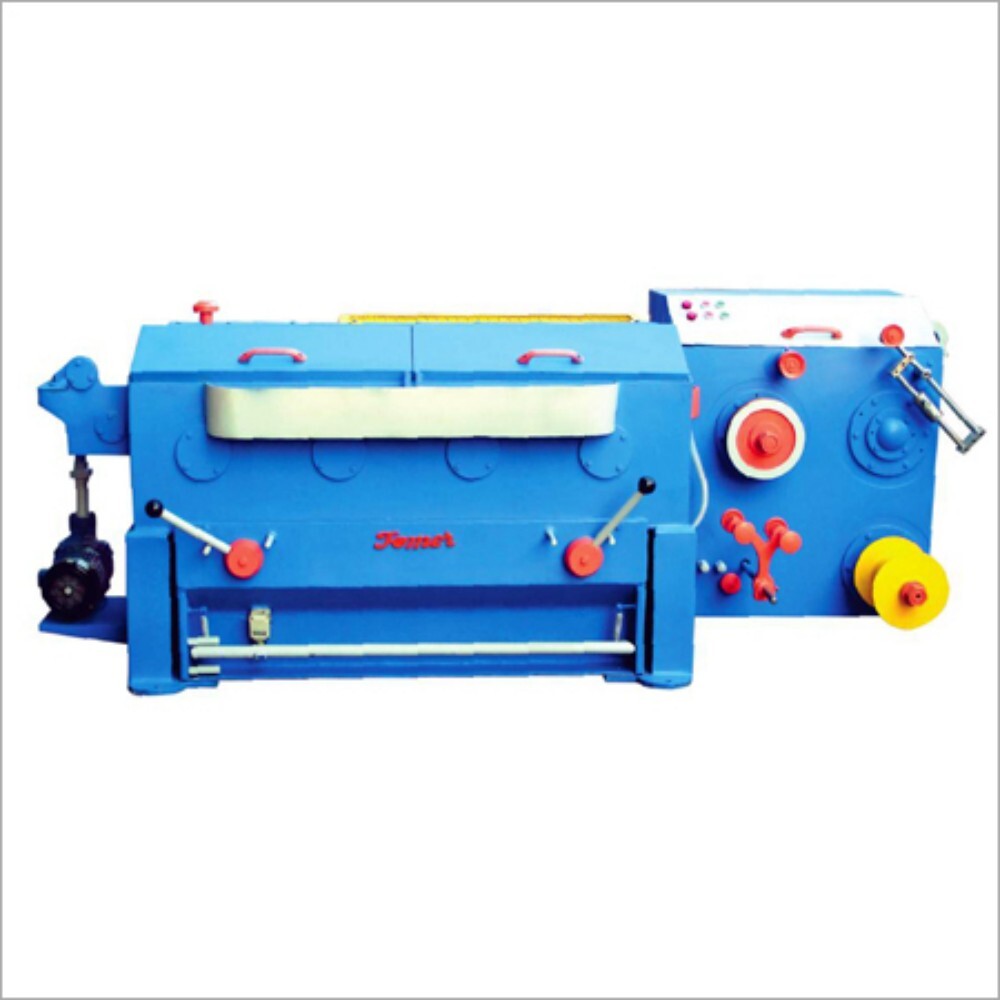

Copper Fine Wire Drawing Machine

Get a Price/Quote

MOQ : 1 Piece

Copper Fine Wire Drawing Machine Specification

Production Speed
900 m/min

Application
Wire Manufacturing, Electrical Industry

Wire Material
Copper

Max De-coiler Weight
1000 kg

Function
Fine Wire Drawing

Drawing Passage
16

Voltage
380V/50Hz

Manufacturing Year
2024

Condition
New

Inlet Diameter
1.6 mm

Drawing Material
Copper

Production Capacity
700 kg/day

Power
75 kW

Product Type
Copper Fine Wire Drawing Machine

Efficiency
Up to 98%

Cooling Method
Water and air cooling

Weight
7.5 Tons

Noise Level
<80 dB

Dimension
8300 mm x 1300 mm x 1600 mm

Safety Mechanism
Emergency stop system

Transmission Type
Gear and belt transmission

Controller Type
PLC touch screen control

Take-up Type
Double Spool Automatic Take-up

Wire Output Diameter Range
0.15 mm - 1.2 mm

Lubrication System
Centralized automatic lubrication

Die Material
Tungsten Carbide

Motor Type
AC Servo Motor

Copper Fine Wire Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Pieces Per Month

Delivery Time
1 Months

Main Export Market(s)
Asia

Main Domestic Market
All India

About Copper Fine Wire Drawing Machine

Extensively used for providing copper wire to make barbed wire, wire mesh and many more, this technologically advanced Copper Fine Wire Drawing Machine is widely demanded amongst clients for its hassle free operation. This machine is manufactured using supreme grade components with the utilization of ultra-modern technology in tune with defined industry standards. Further, this Copper Fine Wire Drawing Machine is available in numerous technical specifications as per the varied needs of the clients at a competitive price.

Features of Copper Fine Wire Drawing Machine:

Trouble-free performance
High operational fluency
Sturdy construction
Longer service life

Specifications:

For Copper Wire	TEW 309/21		TEW 308/21
Inlet Size	1.60mm	1.40mm	1.00mm	0.80mm	0.60mm
Outlet Size	0.29mm	0.25mm	0.18mm	0.14mm	0.10mm
For Aluminum Wire
Inlet Size	1.60mm	1.40mm	1.00mm	0.80mm	0.60mm
Outlet Size	0.29mm	0.25mm	0.18mm	0.14mm	0.10mm
For MS Wire
Inlet Size	1.40mm	1.20mm	1.00mm	0.80mm	0.60mm
Outlet Size	0.25mm	0.20mm	0.18mm	0.14mm	0.10mm
For Hi-Carbon Wire
Inlet Size	1.20mm	1.00mm	0.80mm	0.60mm	0.40mm
Outlet Size	0.30mm	0.25mm	0.19mm	0.15mm	0.10mm
For Stainless Steel Wire / Nicron Wire
Inlet Size	1.20mm	1.00mm	0.80mm	0.60mm	0.40mm
Outlet Size	0.30mm	0.25mm	0.19mm	0.15mm	0.10mm

Type	17DHA	18DHA
Input Wire
Output Wire
Maximum Line Speed
Maximum Number Of Dies
Mechanical elongation
Drawing Capstan
Take-up reel
Final capstan
Drawing/take-up motor
Power supply
Brake
Volume of lubricant
Lubrication of wire drawing
Dimensions (L x W x H)
Weigh

Advanced Automated Take-Up System

Featuring a double spool automatic take-up mechanism, the machine streamlines wire collection, reducing downtime and improving production continuity. This design enables operators to switch spools efficiently, optimizing productivity in high-volume environments such as wire manufacturing plants.

Intelligent Control and Enhanced Safety

The integrated PLC touch screen controller ensures precise parameter adjustments, while the emergency stop system prioritizes operator safety. These features enable swift reactions to critical situations and simplified operation workflows, making it ideal for industrial settings where reliability and safety are paramount.

Superior Wire Quality and Production Efficiency

With 16 drawing passages and tungsten carbide dies, this machine delivers consistent fine copper wires within a 0.15 mm to 1.2 mm output range. Its centralized automatic lubrication and advanced cooling system maintain optimal operating conditions, resulting in top-tier wire quality and sustained efficiency of up to 98%.

FAQs of Copper Fine Wire Drawing Machine:

Q: How does the double spool automatic take-up benefit production efficiency?

A: The double spool automatic take-up system allows seamless transition between spools during operation, minimizing downtime and maintaining continuous wire collection. This feature is essential for maximizing throughput in large wire manufacturing facilities.

Q: What is the process for fine wire drawing on this machine?

A: Copper wire enters the machine at 1.6 mm and passes through 16 drawing stages, each utilizing tungsten carbide dies to incrementally reduce diameter. Controlled by a PLC touch screen, the process ensures precision, while centralized lubrication and cooling systems maintain optimal drawing conditions.

Q: When should the centralized automatic lubrication system be serviced?

A: Regular inspection is recommended, typically every month, to ensure the lubrication system functions optimally. Servicing intervals may vary based on operational hours and environment, but preventive maintenance ensures smooth machine performance and prolongs life.

Q: Where is this wire drawing machine best utilized?

A: This machine is ideal for wire manufacturing production lines, especially in electrical industry sectors where fine copper wire is required. Its robust design and automated features suit heavy-duty industrial environments.

Q: What are the main benefits of the PLC touch screen control?

A: The PLC touch screen control provides intuitive interface for setting parameters, monitoring processes, and troubleshooting. It enhances operational accuracy, reduces human error, and simplifies workflow management for operators.

Q: How does the cooling method help maintain wire quality?

A: Combined water and air cooling efficiently dissipate heat generated during the drawing process, preserving the integrity of copper wires and preventing defects. This ensures consistent output quality, especially during prolonged high-speed production.

Q: What is the advantage of using tungsten carbide dies in the drawing machine?

A: Tungsten carbide dies offer exceptional hardness and wear resistance, allowing consistent wire diameter control and prolonged die life. This results in reduced maintenance costs and superior finished wire quality for demanding industrial applications.
