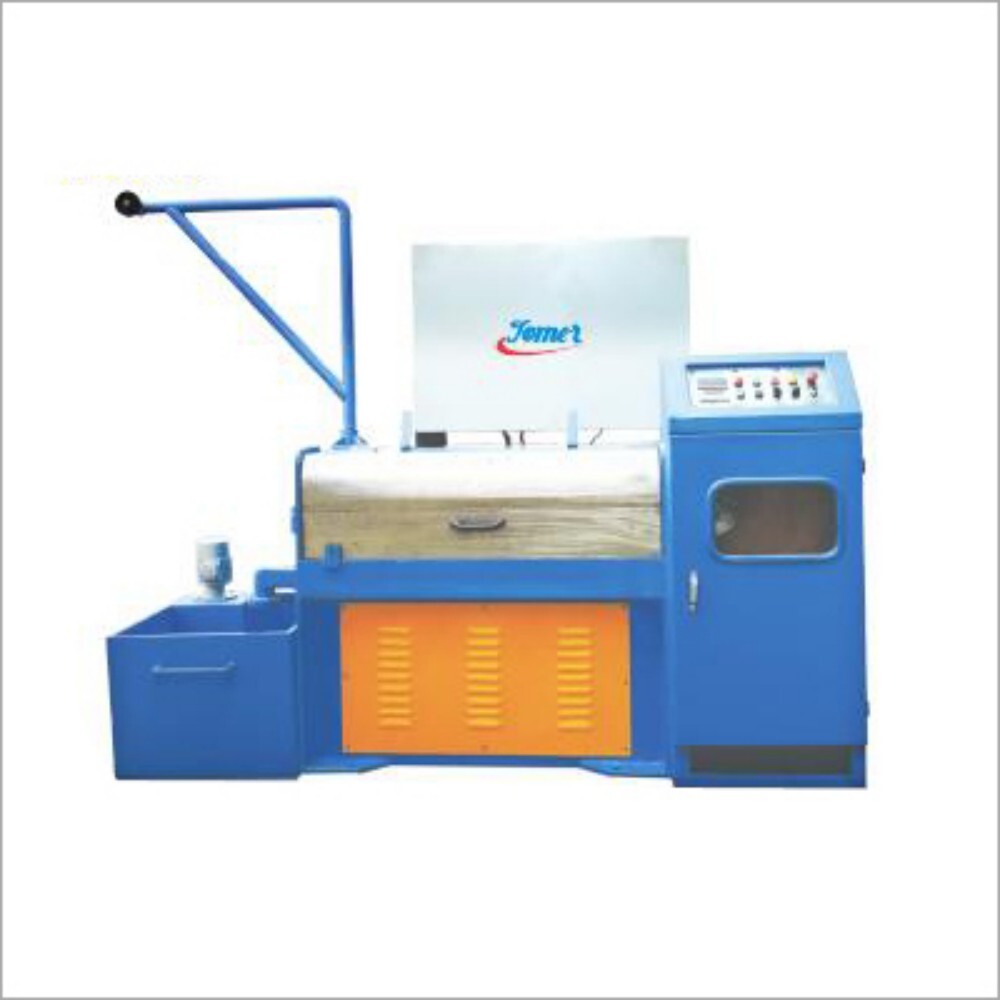

Automatic Wire Drawing Cable Plant

Get a Price/Quote

MOQ : 1 Piece

Automatic Wire Drawing Cable Plant Specification

Drawing Passage
9

Production Capacity
1200 kg/hr

Drawing Material
Copper, Aluminium

Max De-coiler Weight
1500 kg

Inlet Diameter
6.5 mm

Application
Cable Manufacturing

Power
55 kW

Production Speed
12-14 m/s

Wire Material
Copper Wire, Aluminium Wire

Product Type
Automatic Wire Drawing Cable Plant

Manufacturing Year
2024

Function
Wire Drawing and Cable Making

Condition
New

Voltage
415 V

Take-up System
Automatic synchronized take-up

Machine Frame
Heavy Duty Steel

Max Temperature
<45°C during operation

Cooling System
Efficient water cooling

Drive Type
AC inverter drive

Surface Treatment
Rust and corrosion resistant paint

Operating Frequency
50 Hz

Wire Size Range
1.2 mm to 6.5 mm

Dimension
12m x 2.2m x 2.7m

Control Panel
PLC controlled digital panel

Safety Features
Emergency stop, interlock protection

Die Material
Tungsten Carbide

Noise Level
<78 dB

Lubrication Type
Automatic continuous lubrication

Weight
Approx. 8500 kg

Automatic Wire Drawing Cable Plant Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
24 Pieces Per Month

Delivery Time
4 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Automatic Wire Drawing Cable Plant

We aremanufacturer and supplier of high quality Automatic Wire Drawing Cable Plant, Copper Wire Drawing Machine, Fine Wire Drawing Machine, Wire Drawing Equipment and Industrial Automatic Wire Drawing Cable Plant from GHAZIABAD, India. We are manufacturing and supplying Automatic Wire Drawing Cable Plant, Copper Wire Drawing Machine, Fine Wire Drawing Machine, Wire Drawing Equipment and Industrial Automatic Wire Drawing Cable Plant to various cities like, NEW DELHI, NOIDA, GHAZIABAD, MEERUT, SONIPAT, MANESAR, GREATER NOIDA, KANPUR, AMBALA, LUDHIANA, PAONTA SAHIB, MUZAFFARNAGAR, RANCHI,PATNA, JAIPUR, JAMMU, INDOR, GUJARAT, AHMEDABAD, MUMBAI, PUNE and many more.

We are a noteworthy supplier and manufacturer ofWire Drawing Machine. The offered product is made up of supreme quality material, which is procured from authorized vendors of the domain. Checked according to international quality parameters, thisWire Drawing Machineexhibits excellent quality output without any interruption of delay. Owing to robust construction and better efficiency, our device is demanded in all corners of our country. We can also offer customized drawing machine as per the needs of our valuable customers.

Features:

Precisely designed
Quality approved
Low power consumption
Easy to install

Superior Performance and Precision

Designed for industrial cable production, this wire drawing plant incorporates advanced automation and reliable control systems. With a maximum operating frequency of 50 Hz and precise PLC-based operation, it produces high-quality copper and aluminium wire efficiently, maintaining ideal operating temperatures below 45C. The integrated water cooling and automatic lubrication systems further enhance productivity and lifespan.

Rugged Construction and Advanced Safety

Constructed from heavy-duty steel and coated with rust and corrosion resistant paint, the plant stands up to rigorous manufacturing environments. Safety is paramount, with emergency stops and interlock protection built-in. The entire process is continuously monitored via a digital panel, ensuring both operator safety and product integrity during high-speed production.

FAQs of Automatic Wire Drawing Cable Plant:

Q: How does the automatic continuous lubrication system work in the wire drawing process?

A: The plant features an automatic continuous lubrication system that ensures the moving components and wire pass through are constantly oiled, significantly reducing friction, wear, and maintenance while maintaining wire quality throughout the drawing operation.

Q: What advantages does the efficient water cooling system provide?

A: Efficient water cooling maintains the machines operating temperature below 45C, preventing overheating, extending component life, and ensuring the drawn wire maintains structural integrity and consistent quality.

Q: When is this plant suitable for use in cable manufacturing operations?

A: This plant is ideal for facilities requiring high-capacity cable productionup to 1200 kg/hrespecially when drawing copper or aluminium wires ranging from 1.2 mm to 6.5 mm. Its robust design and advanced control panel make it suitable for continuous or large-scale manufacturing environments.

Q: Where is the Automatic Wire Drawing Cable Plant typically installed?

A: It is commonly installed in industrial cable manufacturing units and factories across India and other regions demanding reliable, large-scale wire processing equipment, thanks to its durable construction and significant production speed.

Q: What is the process flow of wire drawing in this machine?

A: The process begins with loading copper or aluminium wire onto the de-coiler (up to 1500 kg). Wires pass through nine drawing passages fitted with tungsten carbide dies, under automatic lubrication and cooling. The drawn wire is then synchronized for automatic take-up, providing seamless integration with downstream cable-making processes.

Q: How does the PLC controlled digital panel enhance machine operation?

A: The PLC (Programmable Logic Controller) controlled digital panel enables operators to monitor, control, and adjust all machine parameters with precision, allowing fine-tuned production for different wire specifications, ensuring quality and reducing the risk of production errors.

Q: What are the key benefits of using this wire drawing plant for manufacturers?

A: Manufacturers benefit from greater efficiency, consistent product quality, and lower operational noise (<78 dB). Features like emergency stop, interlock protection, and automatic synchronized take-up not only safeguard operators but also optimize throughput, resulting in a reliable and cost-effective cable production process.
